In the mid-1990s, the personal computer was undergoing a massive identity shift. It was evolving from a sterile office appliance into an absolute multimedia powerhouse. Yet, while microprocessors were getting exponentially faster and internal storage was expanding into gigabyte territory, the physical blueprint of the PC remained stubbornly frozen in 1984.
The standard AT (Advanced Technology) form factor, originally engineered by IBM, had become a critical structural bottleneck for tech innovation. In 1995, Intel introduced the ATX (Advanced Technology Extended) specification, triggering a quiet infrastructure revolution that fundamentally redefined how computers were built, cooled, cooled down, and powered.
To understand the triumph of ATX, one must look closely at the spatial nightmares of the older Baby AT standard. The layout of an AT motherboard was completely unsuited for the fast-emerging era of dedicated 3D graphics cards and advanced sound processors.
On a Baby AT board, the CPU socket was traditionally placed near the front of the motherboard, directly in line with the long ISA and PCI expansion slots. This created an incredibly frustrating physical bottleneck: if a user purchased a high-end graphics accelerator or an advanced audio card, the long expansion circuit board would frequently collide with the CPU's heatsink, cooling fan, or system RAM modules. Upgrading a PC often required a chaotic game of spatial tetris, forcing builders to sacrifice specific expansion options just to make components fit inside the chassis.
Beyond spatial limitations, the AT standard posed a literal, physical danger to the computer's underlying electronics. The AT power supply unit (PSU) connected to the motherboard using two separate, identical, unkeyed six-pin cables commonly designated as P8 and P9.
Because these connectors were not physically keyed to prevent incorrect insertion, a builder could easily slide them onto the motherboard pins out of order or completely reversed. Doing so instantly inverted the electrical voltages, sending catastrophic current directly into sensitive logic circuits. Tech hobbyists of the 90s lived by a nervous, universally shared operational mantra to ensure they avoided a smoking motherboard.

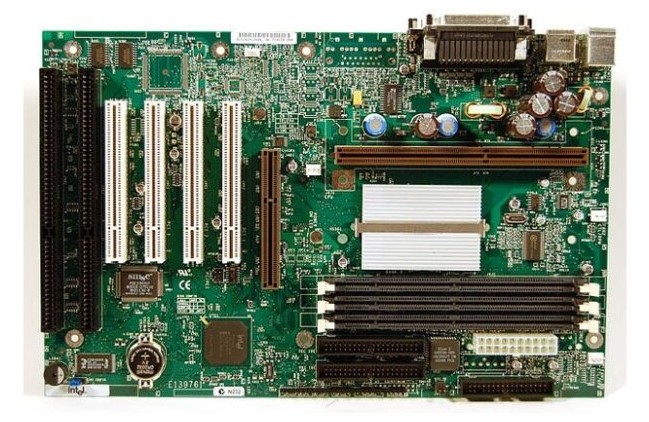

Intel’s ATX specification solved these systemic flaws with an elegant masterstroke: they rotated the entire motherboard layout by 90 degrees relative to the expansion slots. This basic architectural shift permanently relocated the CPU socket and memory slots to the upper portion of the board, safely clearing the path for long expansion hardware.
This layout rotation completely transformed system thermal dynamics. By placing the CPU directly adjacent to the power supply unit, the system could finally utilize the power supply's integrated intake fan to draw hot air directly away from the processor, establishing a unified, highly efficient internal airflow path. Furthermore, ATX consolidated the system's external ports onto a standardized, integrated I/O backplate. This cleanly eliminated the chaotic, tangled mess of internal serial and parallel ribbon cables that traditionally choked internal airflow inside older AT tower enclosures.
HARDWARE_LOG // SPEC_REV 1.0: The introduction of the integrated ATX I/O backplate allows motherboard manufacturers to natively embed serial, parallel, PS/2, and early USB ports directly onto the circuit board, removing ribbon cable impedance entirely.
Perhaps the most profound advance delivered by the ATX specification was the total elimination of the high-voltage physical power switch. AT systems relied on a heavy mechanical toggle switch connected directly to the mains power line of the PSU, meaning turning a PC off required physically severing the primary electrical current.

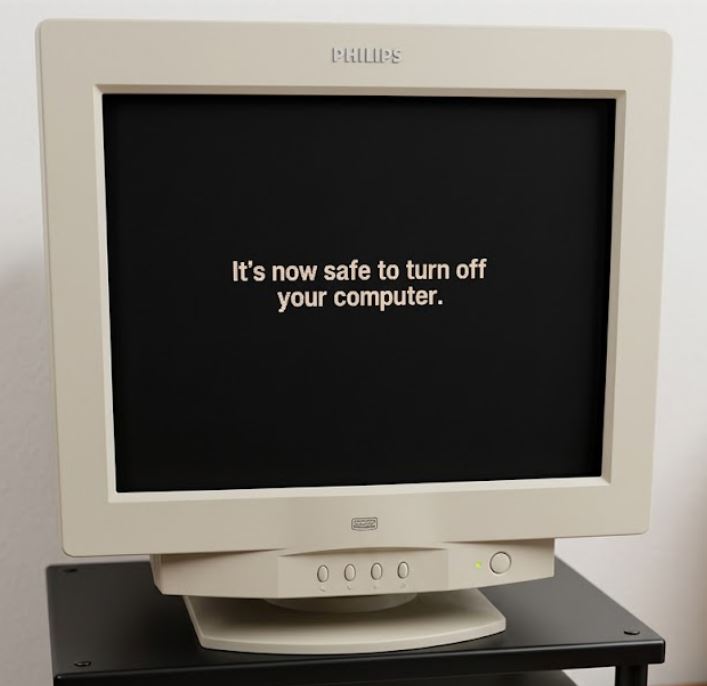

ATX replaced this archaic mechanism with a single, unified 20-pin power block featuring an always-on 5V standby power line (5VSB). This enabled "soft-power" functionality, passing power management control directly to the operating system software. This shift made the iconic MS-DOS and Windows 95 "It is now safe to turn off your computer" warning screens entirely obsolete. For the first time, software could gracefully initiate its own system shutdown, sleep states, and automated power management profiles.
Because transitioning an entire global hardware supply chain took several years, component manufacturers built transitional motherboards to keep the legacy AT form factor alive for budget-conscious upgraders. The absolute end of the line for mainstream AT motherboards occurred during the late 1990s over the Socket 7 and Super Socket 7 processor generations.
A few highly specific, final lines of consumer CPUs closed out the AT legacy:
While a handful of rare, highly non-standard transitional boards were engineered to support Intel’s Slot 1 architecture (Pentium II), they were highly impractical workarounds. By the turn of the millennium, the skyrocketing thermal envelopes, power requirements, and clock speeds of the Pentium III and AMD Athlon eras officially laid the historic AT standard to rest, cementing ATX as the definitive foundation of modern desktop computing.
