The year 2004 was an incredibly turbulent and exciting era for PC gaming. Developers were pushing visual boundaries like never before and the leap in graphics technology was staggering. Nvidia had just launched their GeForce 6 series with the flagship 6800 Ultra completely dominating the high end market. Soon after the mid range 6600 GT arrived and became the undisputed king of sensible performance. But what about the absolute entry level? What about the millions of people buying standard office machines from high street shops who still wanted to play the latest games?

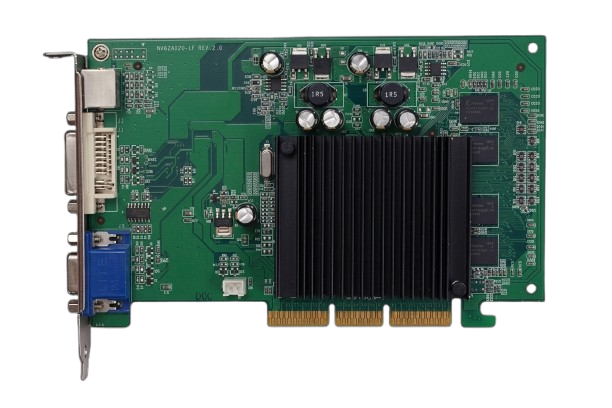

To fill this massive void Nvidia introduced the GeForce 6200 in late 2004. It was designed from the ground up to be the ultimate budget display adapter. It was not meant to break benchmark records. It was meant to be cheap to manufacture easy to cool and fully compatible with the very latest rendering technologies.

1. The Technical Specifications and the TurboCache Trick

The GeForce 6200 was built primarily around the NV43 and later NV44 silicon cores. It featured four pixel pipelines and three vertex shaders running at a core clock speed of around 300 MHz. For context the premium 6800 Ultra boasted sixteen pixel pipelines. The 6200 was severely cut down but it retained one incredibly important feature from its bigger brothers. It fully supported DirectX 9.0c and Shader Model 3.0.

This support for Shader Model 3.0 was a massive selling point. It meant the 6200 could physically understand and launch the very latest games whereas older and theoretically faster premium cards from previous generations would simply throw up an error message and refuse to boot because they lacked the necessary hardware instructions.

However Nvidia had to keep the price down and memory was expensive. To solve this they introduced a deeply controversial technology called TurboCache. Available on the newer PCI Express motherboards TurboCache allowed the graphics card to have very little dedicated video memory onboard sometimes as low as 16 Megabytes or 32 Megabytes. When a game demanded more memory the 6200 would aggressively borrow standard system RAM across the PCI Express bus to make up the difference up to 256 Megabytes.

While this looked brilliant on a retail box it was a severe bottleneck in reality. System RAM was significantly slower than dedicated video RAM. If a user only had 512 Megabytes of total system memory in their computer the graphics card stealing half of it for TurboCache would grind the entire machine to a halt. Enthusiasts quickly learned to avoid TurboCache models and hunt for versions with fully dedicated 128 bit memory.

2. Pricing: A True Budget Contender

When it launched the 6200 was priced exceptionally well. Depending on the memory configuration you could pick one up for around 40 to 60 quid in the UK. This pricing strategy was a masterstroke by Nvidia.

System builders and OEM brands bought them by the shipping container. If you walked into a PC World or an independent computer shop in 2005 and looked at a cheap family desktop it almost certainly had a GeForce 6200 inside. It was cheap enough to throw into a basic computer but had enough brand recognition and technical buzzwords on the box to make it sound like a capable gaming machine.

3. The Modding Legend: Free Performance

For a brief period the GeForce 6200 became legendary among hardware hackers and overclockers due to a spectacular manufacturing shortcut. Early versions of the standard 128 bit 6200 AGP card were not actually using the cheap NV44 silicon. Because Nvidia was struggling to keep up with production they simply took the more expensive NV43 chips used in the 6600 series and laser locked four of the eight pipelines before slapping a 6200 sticker on them.

Resourceful PC builders quickly realized that by using a software tool called RivaTuner they could simply tick a box and reactivate those four dormant pipelines. Instantly their 50 quid budget card transformed into a 100 quid GeForce 6600 entirely for free. Nvidia quickly realized their mistake and physically severed the pipelines in later silicon revisions but for those lucky enough to buy an early batch it was the ultimate budget upgrade.

4. Gaming in the Mid 2000s: What Could It Play?

The gaming performance of the 6200 was highly subjective depending entirely on your expectations. If you wanted to play at massive resolutions with all the visual bells and whistles turned on you were going to be deeply disappointed. But if you were willing to drop the resolution to 800x600 and turn the shadows down it was a remarkably resilient little piece of silicon.

• World of Warcraft: Released right as the 6200 hit the market this pairing was a match made in heaven. WoW was designed to run on a toaster and the 6200 handled the colourful sprawling landscapes of Azeroth perfectly giving millions of players their first taste of MMO addiction.
• Half Life 2: Valve optimized their Source engine brilliantly. The 6200 could run Half Life 2 very smoothly on medium to low settings making the incredible physics and storytelling accessible to gamers on a strict budget.
• The Sims 2: Another massive hit of the era. The card chewed through neighborhood building and house decorating without breaking a sweat.

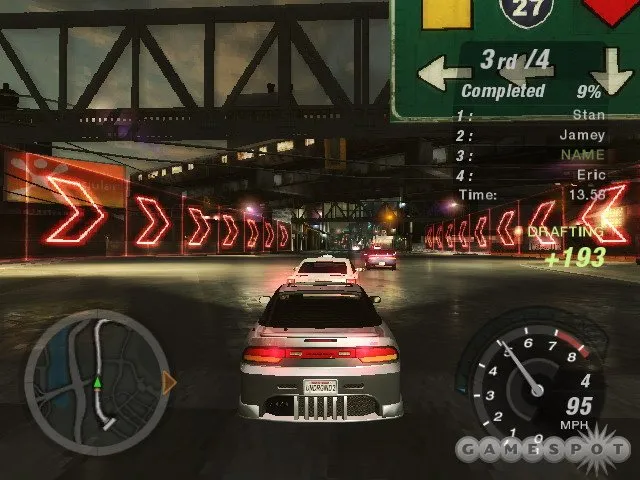

• Need for Speed Underground 2: The neon soaked streets ran decently well provided you disabled the more advanced road reflections and motion blur effects.
• Doom 3: This is where the card hit a brick wall. The heavy dynamic lighting of Doom 3 terrified the little 6200. While it would boot the game thanks to Shader Model 3 support playing it required dropping to the absolute lowest graphical settings and praying during heavy firefights.

5. The Legacy

The GeForce 6200 is rarely remembered as a powerhouse. Hardware purists often mock it for the terrible TurboCache versions and the incredibly narrow 64 bit memory bus found on later models. Yet despite its flaws it remains a crucial piece of PC gaming history.

It democratized advanced rendering. It forced developers to realize they could utilize advanced Shader Model 3 techniques without entirely alienating the entry level market. It was the card that lived in the dusty beige family computer under the stairs quietly rendering hundreds of hours of classic gaming for an entire generation of teenagers who could not afford anything better.
