Making Computers Faster for Videos and Pictures: The MMX Story

Making Computers Faster for Videos and Pictures: The MMX Story

Before 1997, personal computers were good at basic tasks like typing documents, but they really struggled with running smooth videos, playing high quality music, or showing fast moving graphics in games. Every time you wanted to, say, brighten a picture, the computer had to process the tiny color values of every single point in the image, one at a time. This was incredibly slow and inefficient, like commanding each worker in a massive factory individually for every single tiny step.

Then, in 1997, Intel introduced MMX (Multimedia Extensions) technology. MMX wasn’t just a slight speed boost; it was a fundamental change in how computer processors (CPUs) handled data for multimedia. It was the biggest shift in the core language computers use in years, specifically aiming to make entertainment and graphics much faster.

The Magic of Parallel Processing

Instead of processing data one simple piece at a time, MMX introduced a method to handle multiple smaller pieces of data simultaneously with one single command. This was like giving a command to a whole team at once (e.g., "everyone block right!") rather than instructing each player individually.

For things like brightening an image or playing a video, where the same math needs to be done to millions of tiny values, this theoretically meant processing up to eight times faster for each step. This parallel processing massively sped up these data heavy activities.

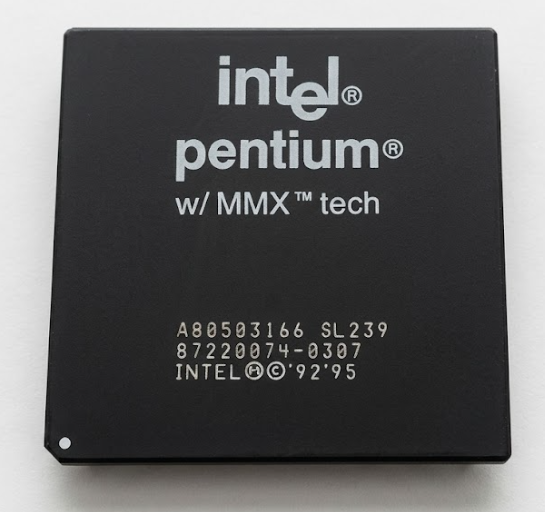

When MMX arrived, it was integrated into special, faster versions of Intel's Pentium processors, famously called Pentium with MMX Technology. These chips ran between 166MHz and 233MHz and had extra internal memory to keep the faster processor busy. Computers from competing companies like AMD and Cyrix couldn’t do this parallel processing initially, putting Intel way ahead for anyone wanting a great multimedia experience until the competition caught up. Intel quickly made MMX a standard feature in their next major chip design (the Pentium II) to keep it that way.

The Flaws and the Competition

Of course, MMX wasn't perfect. Its biggest issue was that it actually reused the same internal memory spaces as the complex numbers used for heavy duty calculations, like 3D physics in games. This meant the computer couldn’t easily do MMX parallel processing and complex 3D math at the exact same moment, requiring some clunky steps to switch back and forth. Also, MMX only worked with whole numbers, not complex decimal numbers needed for things like geometry and physics in true 3D environments.

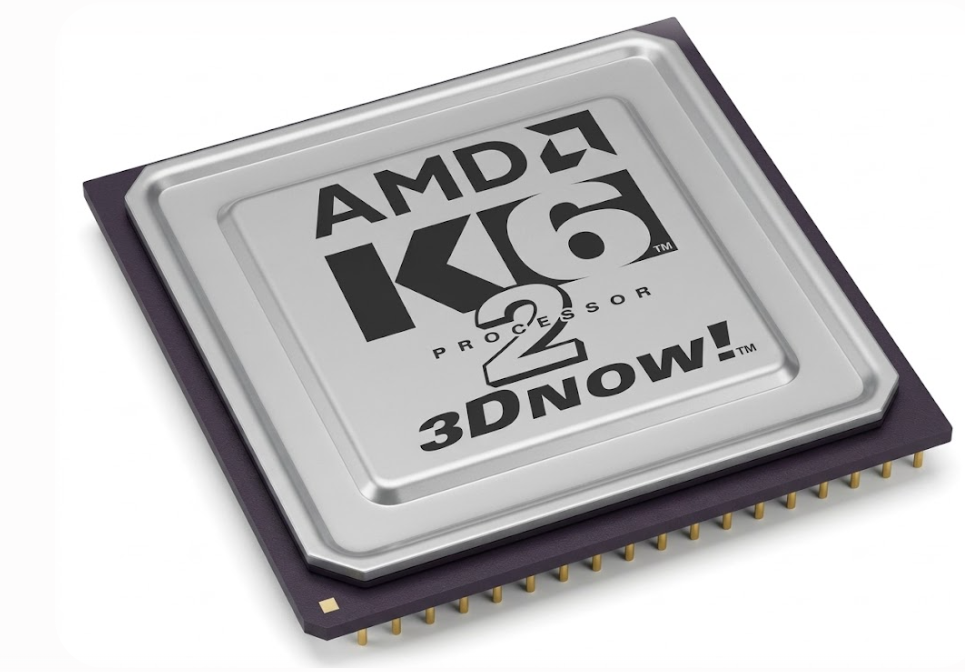

Seeing these limitations, other computer makers quickly built their own improved versions. AMD introduced "3DNow!" just a year later in 1998, which specifically focused on parallel processing for those complex 3D numbers and expanded whole number processing without the memory conflict issue. This boosted early 3D games significantly.

Intel responded aggressively, introducing SSE (Streaming SIMD Extensions) with the Pentium III in 1999. SSE finally added comprehensive parallel processing for complex 3D numbers using separate, bigger memory spaces, as well as much faster whole number processing, largely replacing MMX for anything requiring real speed. Since then, numerous newer and much more powerful parallel processing technologies (SSE2, SSE3, AVX) have cemented parallel processing as a fundamental part of all modern computers.

Is MMX Still Used Today?

Explicitly, practical hand coding for MMX doesn't happen anymore for new software. Modern computer compilers (the programs that translate developer code into computer language) have gotten vastly smarter at automatically making code process in parallel using the newer, much faster and bigger parallel instructions, making explicit lower level MMX coding completely unnecessary for typical applications.

While some very specific software might implicitly or through extremely old code still execute MMX instructions under the hood for compatibility or niche scenarios, any serious modern computing workload uses the vastly superior newer technologies. Fundamentally, MMX is foundational historically but computationally obsolete directly.

MMX was a huge milestone, the first real step in making personal computers truly capable of processing data in parallel. It accelerated the entire multimedia revolution, making video, audio, and gaming smoother and better. Even though it was quickly surpassed by newer, faster tech, it proved that parallel processing was the future, permanently changing how computers work and setting the stage for the incredibly capable digital world we have today.

P.S. If you are wondering which specific Intel MMX processor was considered the absolute best of the era, the answer usually splits into two camps.

For the standard desktop PC buyer in 1997, the Pentium MMX 233 MHz was the undisputed king. It maxed out the classic motherboard capabilities of the time and provided incredibly stable performance for early Windows 95 games.

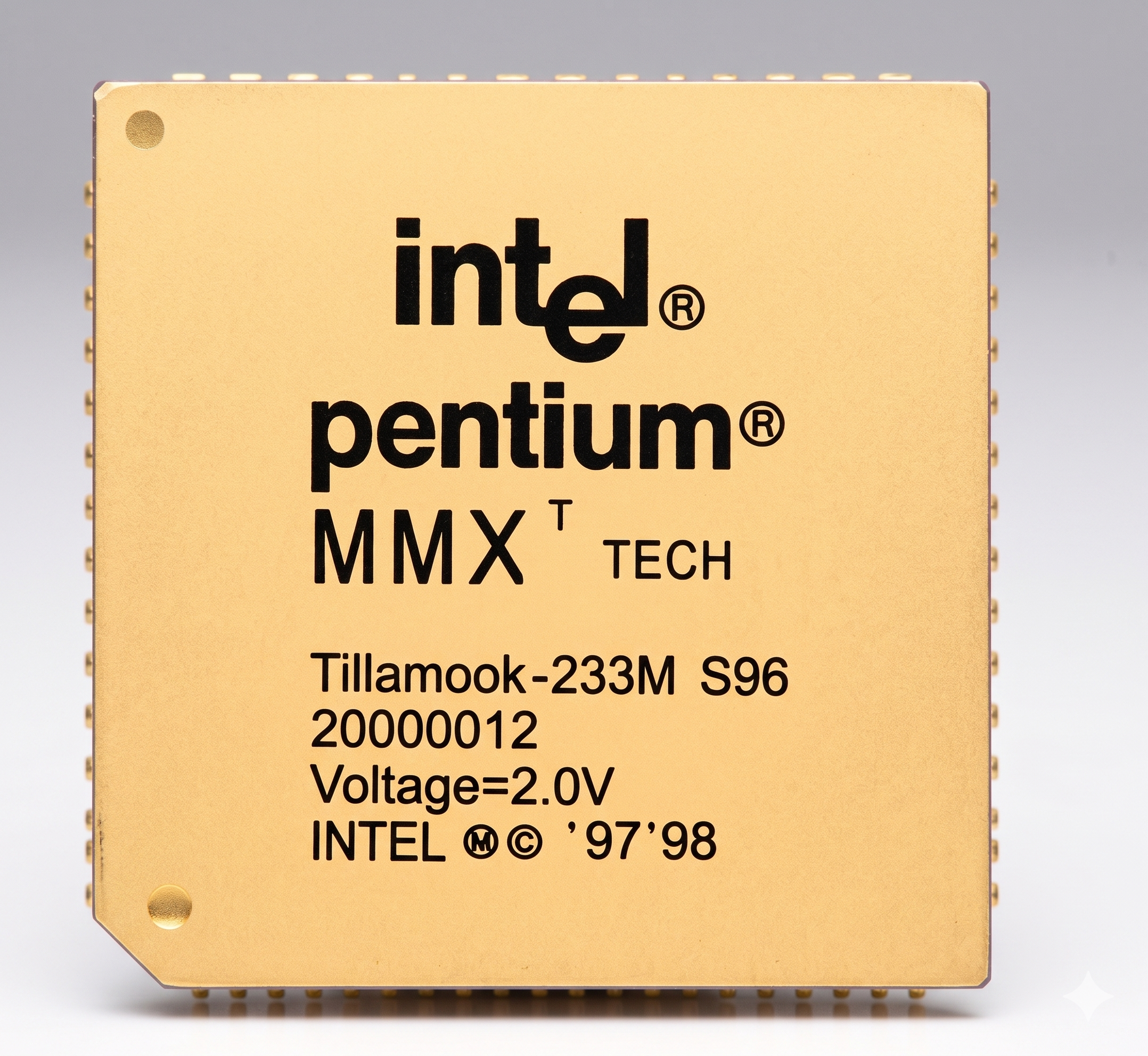

However, hardcore hardware enthusiasts had a secret weapon. In 1998, Intel released the Mobile Pentium MMX for laptops, codenamed Tillamook. Because it was engineered for battery life, it was built using a much smaller manufacturing process and required very little voltage. This meant it ran exceptionally cool. Resourceful builders realized they could physically drop this laptop chip into a standard desktop motherboard. Thanks to the low heat output, they could easily push that 266 MHz chip all the way up to 350 MHz with basic air cooling.

So while the desktop 233 MHz was the official champion, the mobile Tillamook remains the ultimate holy grail for retro hardware collectors today.
