The Voodoo Moment: How 3dfx Ignited the PC Gaming Graphics Revolution

If you were to show a modern gamer a screenshot of a top-tier PC title from 1994 next to one from 1997, they might assume a decade of technological evolution had passed between them. In reality, that staggering leap from blocky, pixelated nightmares to smooth, filtered, bilinear-perfect environments was caused by a single seismic event in hardware history: the introduction of the 3dfx Voodoo Graphics chipset.

Before 3dfx, PC gaming was in a transitional awkward phase. The industry knew 3D was the future, but the hardware wasn't ready. The arrival of the Voodoo card didn't just iterate on existing technology; it drew a line in the sand. It defined the moment that dedicated 3D hardware acceleration became essential, changing how games were made, how they looked, and how we played them forever.

The Pre-Accelerator Era: The Tyranny of Software Rendering

In the early 1990s, the Central Processing Unit (CPU) was king. If a game wanted to display 3D graphics, the CPU had to do all the heavy lifting. This is known as Software Rendering.

Processors like the Intel 80486 and the early Pentiums were designed for general mathematics, not the complex geometry and rasterization required for real-time 3D graphics. Games like Doom (1993) achieved their speed by using clever programming tricks to simulate 3D (often called 2.5D), but they still relied heavily on CPU-driven integer math to draw every pixel.

When true 3D games arrived, such as the original Quake in 1996, software rendering showed its limitations. To maintain a playable frame rate, gamers had to run the game in low resolutions (320x200 or 640x480 if they had a beast of a machine). The visuals were characterized by intense pixelation, "vertex swimming" (where polygons warped and jiggled because the CPU couldn't calculate coordinates precisely enough), and a total lack of texture filtering, resulting in blocky textures when close to a wall.

The CPU was bottlenecked. It was trying to handle game logic, AI, physics, sound, and draw every pixel on the screen. The industry desperately needed to offload the visual workload to dedicated hardware.

Enter 3dfx and the Voodoo Revolution

Founded in 1994, 3dfx Interactive initially focused on arcade hardware. However, they realized the burgeoning PC market was ripe for a specialized chip. In late 1996, they released the Voodoo Graphics chipset.

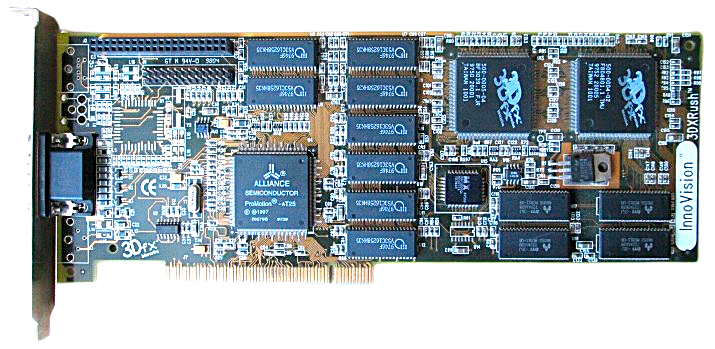

It is important to understand what the original Voodoo was: it was not a complete video card. It was a purely dedicated 3D Hardware Accelerator. You still required a standard 2D VGA card (like a Trident or Matrox) to show your desktop and run 2D games. The Voodoo card sat alongside it, connected via a physical "pass-through" cable outside the back of the PC. When a generic 2D application ran, the signal passed through the Voodoo card unchanged. But when a 3D game launched, the Voodoo card took over the display signal entirely.

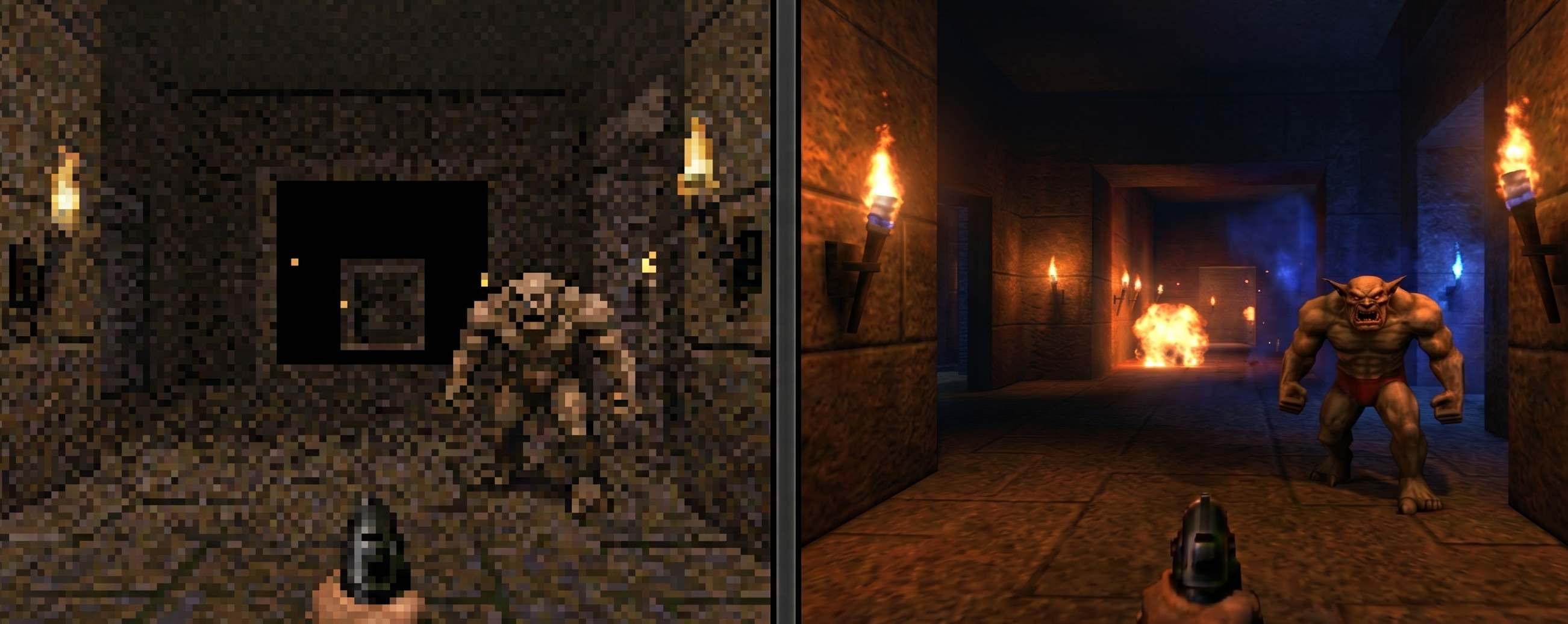

The impact was instantaneous and undeniable. The flagship showcase was a special version of Quake called GLQuake, designed to work with the OpenGL open graphics standard that 3dfx supported.

Gamers who installed a Voodoo card and ran GLQuake witnessed a miracle. The resolution jumped to a crisp 640x480. The jiggling polygons became perfectly stable. Most importantly, 3dfx introduced the world to Bilinear Filtering. Suddenly, walls weren't made of large, ugly squares; textures were smoothed out, creating a massive sense of immersion. Lightmaps allowed for smooth shadows and colored lighting. Furthermore, because the CPU was no longer handling rendering, frame rates skyrocketed from a choppy 15 frames per second to a silky-smooth 30 or even 60.

Defining the 3D Landscape: Software, Accelerators, and APIs

The success of 3dfx established the vocabulary for the next decade of gaming hardware. To understand the shift, we must categorize the different types of 3D rendering that emerged during this time.

1. Software Rendering

As described, this relies purely on the host CPU. It was the standard until 1996 and remained a fallback for budget PCs for several years after. It offered no filtering, lighting effects were rudimentary, and performance was severely limited by CPU clock speed.

2. Fixed-Function Hardware Acceleration

This is what 3dfx pioneered. These chips had specific logic hardwired into the silicon to handle certain tasks very fast. They could do math for triangle setups, rasterize polygons, apply textures, and perform bilinear filtering. They could not do anything else, but what they did, they did remarkably well. Later competition included the NVIDIA RIVA 128 and S3 ViRGE (though the latter was often jokingly called a "2D decelerator" because its 3D was so slow).

3. Application Programming Interfaces (APIs)

Hardware is useless without software to tell it what to do. APIs are the bridge between the game developer and the video card.

• Glide: This was 3dfx’s proprietary API. Because they owned the hardware and the software, Glide was incredibly optimized and easy for developers to use. For a few years, if you wanted the best graphics, you played the Glide version of the game.
• Direct3D: Microsoft recognized the importance of 3D and introduced Direct3D as part of DirectX. Early versions were clunky and disliked by developers, but Microsoft iterated quickly.
• OpenGL: Originating from the professional workstation world (Silicon Graphics), OpenGL was a clean, powerful, open standard.

The Voodoo 2, Competition, and the Move to GPUs

3dfx didn't stop with the first card. In 1998, they released the Voodoo 2. This was an incremental but powerful upgrade. It was still a dedicated 3D accelerator, but it was much faster, supported higher resolutions (800x600), and introduced SLI (Scan-Line Interleave). SLI allowed a gamer to put two Voodoo 2 cards in one PC, with each card drawing alternating lines of the screen, effectively doubling performance.

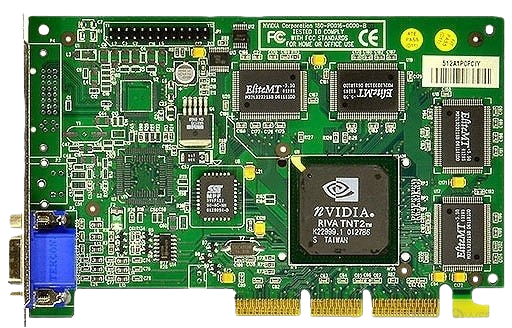

However, the competition was heating up. NVIDIA released the RIVA TNT and later the TNT2. These were 2D/3D combined cards, eliminating the need for pass-through cables.

The definitive end of the initial 3dfx era came in 1999 with the release of the NVIDIA GeForce 256. NVIDIA coined a new term for this chip: the GPU (Graphics Processing Unit).

While 3dfx specialized in rasterization (drawing pixels), the CPU still had to handle the geometry calculations (Transform and Lighting, or T&L). The GeForce 256 moved T&L onto the graphics card itself. By offloading even more of the mathematical burden from the CPU, NVIDIA took the lead in performance and feature sets. 3dfx, hampered by management missteps and a failure to integrate T&L quickly enough, was eventually acquired by NVIDIA in late 2000.

The Cost of Admittance

Joining the 3D revolution was not cheap. In the mid-1990s, a generic 2D VGA card might cost under $100. When the 3dfx Voodoo 1 launched, the standalone accelerator cards retailed for approximately $200 to $300 USD (roughly $380 to $570 in 2024 money, adjusting for inflation).

For the definitive experience in 1998, a Voodoo 2 cost about $300 USD. If you wanted an SLI setup, you were looking at $600 for graphics cards alone, on top of a high-end Pentium II system that already cost over $2,000. It was an expensive hobby, but the visual difference was so dramatic that gamers willingly saved up to experience "Voodoo Magic."

The introduction of 3dfx didn't just add more colors or more pixels to games; it introduced a new standard of visual fidelity that forms the basis of rasterization to this day. 3dfx proved that specialized silicon was required to create believable virtual worlds. While the company is gone, every modern GPU from NVIDIA, AMD, and Intel owes its existence to that first, strange, pass-through 3D accelerator that showed us just how beautiful a video game could truly be.
