To plug a modern peripheral into a personal computer is an act completely stripped of friction. You take a Type-C or Type-A connector, push it into a slot blindly, and within milliseconds, an abstracted operating system layer silently handles the handshake. The device works.

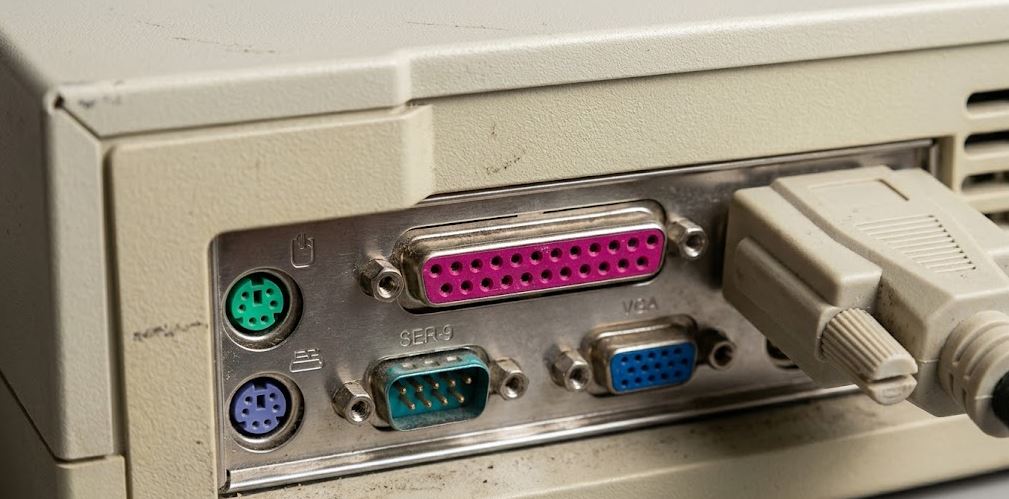

However, go back to the late 1980s and mid-1990s, and adding hardware to a PC was closer to performing minor surgery on an uncompromising digital ecosystem. Before the advent of the Universal Serial Bus (USB) in the late 90s, the back of a beige IBM compatible clone was a mechanical landscape of completely different, highly specialised interfaces. Every peripheral required its own custom port type, its own explicit hardware resource allocation, and a significant amount of patience from the user.
Prior to USB, computing hardware was strictly categorised by interface specifications. If you bought an external device, it came with a highly specific cable designed for one single, dedicated port style on the rear panel.
Typically found in either 9-pin (DE-9) or older 25-pin (DB-25) male configurations, the serial port was the workhorse of low-speed data communication. Data moved sequentially, one single bit at a time. This interface was predominantly used to connect mice, external analog modems, and early digitiser tablets. Because serial communication was slow, initializing a connection required matching baud rates, parity bits, and stop parameters inside your communication software.
Mechanically distinct from the serial port, the parallel port was a wide, 25-pin female connector (DB-25) that transferred a full byte (8 bits) of data simultaneously across parallel wires. This massive boost in data throughput made it the exclusive home of dot-matrix and early laser printers. Later in the 90s, high-capacity external storage options like the Iomega Zip Drive utilised the parallel port, stretching the interface to its absolute bandwidth limits while causing pass-through printing conflicts.
An absolute staple for video gamers, this 15-pin, two-row female socket lived directly on the back of dedicated sound cards like the Creative Labs Sound Blaster. It handled analog joystick positioning metrics via potentiometers and doubled as a hardware gateway for electronic instruments via external MIDI breakout cables.
Before mice and keyboards shared a unified connector, keyboards plugged into a massive, heavy-duty 5-pin round DIN socket. By the time IBM launched the PS/2 architecture, this was streamlined down to tiny, colour-coded 6-pin Mini-DIN connectors—purple for keyboards and green for mice. Crucially, these ports were strictly non-hot-swappable; plugging a PS/2 mouse in while the PC was turned on could cause a small voltage spike that fried the keyboard controller chip on the motherboard.
When a user needed to add core internal features—such as audio, internal modems, network cards, or video controllers—the chassis cover had to be unscrewed completely. Inside lay a series of long, parallel structural slots directly soldered to the motherboard bus system.
+-------------------------------------------------------------------+ | Legacy Internal Bus Evolution: | | | | [ XT Bus ] --> 8-bit baseline internal architecture | | [ ISA Bus ] --> 16-bit expansion standard (Sound Blaster era) | | [ VESA Local ] --> Extended 32-bit slot layout for 486 systems | | [ PCI Bus ] --> High-speed intelligent architecture framework | +-------------------------------------------------------------------+
The dominant architecture for over a decade was the 16-bit Industry Standard Architecture (ISA) slot. These long, black expansion channels accepted full-length cards that flexed and creaked under physical hand pressure during installation. For video operations, the bandwidth restrictions of the ISA bus eventually created massive display bottlenecks. This forced the industry to develop temporary structural workarounds like the cumbersome VESA Local Bus (VLB)—which added an extension straight onto the back of an ISA slot—before ultimately standardising on the high-speed, intelligent Peripheral Component Interconnect (PCI) slot architecture.
While standard consumer PCs relied on cheap, predictable IDE connections for internal hard drives, power users, servers, and retro enthusiasts lived in an entirely different parallel dimension governed by SCSI (Small Computer System Interface, pronounced "Scuzzy"). If IDE was a slow, basic dual-lane country road, SCSI was an intricate, high-speed industrial rail network.

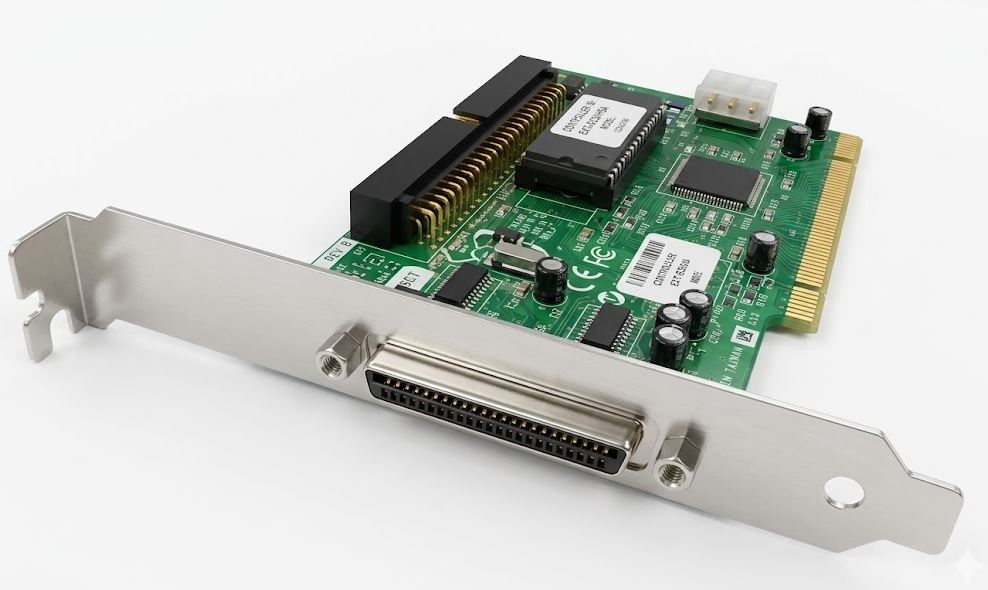

Instead of just connecting a single drive to a single port, SCSI operated as an expandable bus system. Via a dedicated SCSI host adapter card plugged into an ISA or PCI slot, a user could daisy-chain up to seven (and later, fifteen) high-performance internal and external devices together in a single loop. This interface was the premium choice for server hard drives, high-end flatbed scanners, tape backup units, and early rewritable CD-ROM drives.
+-------------------------------------------------------------------------+ | Typical External SCSI Daisy-Chain Topology: | | | | [PC Host Adapter] ---> [External Scanner] ---> [External Zip Drive] --| | | | | | [Active Termination Block] <------------------------------------------+ | +-------------------------------------------------------------------------+
Mechanically, SCSI was an intimidating beast. Cables were massive, heavily shielded gray ribbons that felt like industrial hardware. The connectors went through a chaotic mechanical evolution: starting with giant 50-pin Centronics connectors (featuring metal wire clips), moving to 50-pin high-density (HD50) D-sub connectors, and eventually scaling to microscopic 68-pin configurations for ultra-wide bandwidth drives. Connecting an external SCSI array meant wrestling with thick cables that possessed almost zero structural flexibility.
Managing a SCSI array required absolute obedience to two fundamental laws of electrical engineering. Failure to respect either resulted in a completely unresponsive boot loop or silent, agonizing data corruption.
Despite the immense frustration of troubleshooting "Scuzzy" chains, the benefits for workstation performance were monumental. Unlike IDE drives—which ruthlessly hijacked the system CPU to handle every single raw data read/write sector transfer—SCSI devices possessed their own independent intelligent on-board controllers.
The PC’s CPU could simply throw a complex read instruction at a SCSI host card and immediately return to rendering a graphic or calculating a spreadsheet. The SCSI bus handled the data fetching entirely in the background, copying it directly into system RAM via DMA. Furthermore, because SCSI allowed synchronous, multi-device access, you could burn a CD, read from a hard drive, and pull a raw image cache from a scanner simultaneously without a single drop in overall system clock cadence.
The true struggle of the pre-USB era did not stem from the mechanical layout of the plugs, but rather from the brutal reality of system resource management. In early x86 architectures, the CPU communicated with expansion hardware via three tightly restricted system pools: Interrupt Requests (IRQs), Direct Memory Access (DMA) channels, and I/O Address ranges.
An IRQ is a physical hardware line used by a device to catch the immediate attention of the CPU. The system was limited to exactly 16 IRQs (indexed from 0 to 15), and the vast majority were locked down by baseline motherboard devices:
This left an incredibly narrow window of open lines for additional hardware expansions. If a user installed a new Sound Blaster sound card and an internal dial-up modem, they had to ensure that both cards were not trying to occupy the same channel. If two devices shared an IRQ line, the system would instantly lock up, freeze, or emit a piercing screech through the speakers the exact moment both devices were called into action.
To resolve these resource standoffs, cards were populated with arrays of tiny plastic blocks called jumpers or blocks of micro-switches called DIP switches. Users had to consult dense printed manuals, take a pair of tweezers, and physically bridge specific metal pins on the circuit board to reassign the card to an alternate address layer (such as moving the audio interrupt from IRQ 7 to IRQ 5).
Even if the physical configurations were correct, the software landscape under MS-DOS offered no automatic support framework. There were no background setup wizards. Every peripheral required its own explicit device driver loaded manually into memory during boot execution.
Users spent hours manually editing text strings inside files like CONFIG.SYS and AUTOEXEC.BAT. A single scanner or CD-ROM drive insertion required adding proprietary line assignments to mount the hardware device signature. Because MS-DOS was bound to the hard 640KB conventional memory barrier, loading too many peripheral device drivers would quickly exhaust base memory, leaving insufficient space to actually launch application executables or games.
This environment turned system tuning into a competitive art form. Users spent hours rearranging driver load sequencing lines, utilizing high-memory tools like EMM386.EXE, and employing commands like DEVICEHIGH and LOADHIGH to shove mouse, SCSI, and CD-ROM driver footprints past the 640KB barrier into the Upper Memory Area (UMA).
Despite the constant risk of resource conflicts, the pre-USB ecosystem provided distinct advantages that retro computing purists look back on with deep appreciation. Because there was no abstraction hidden behind complex plug-and-play operating system kernels, there was a direct, raw connection between the code and the underlying circuit boards.
When you configured an application or game to look for a device at Port 220h, IRQ 5, and DMA 1, data moved directly along those specified pathways without latency or OS scheduling delays. There were no hidden telemetry updates, no background driver updates breaking stability over a network connection, and no corrupted registry tables quietly breaking your configurations. If the physical jumpers matched your software parameters, the hardware executed your commands exactly as intended.
This era rewarded technical curiosity. To successfully build, upgrade, and maintain a PC in the pre-USB world, you had to truly understand system logic, resource architecture, and electrical routing protocols. It was an uncompromising era of computing history where getting a sound card to sing or a joystick to respond felt like a hard-fought engineering victory.
